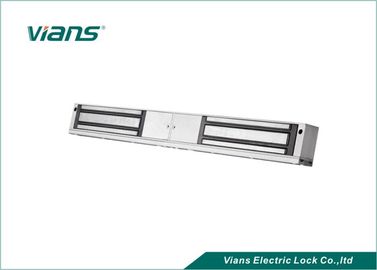

12v 24v Double door 600lb Signal monitored Electric Magnetic Lock , electromagnetic lock EM lock

12v 24v Double door 600lb Signal monitored Electric Magnetic Lock , electromagnetic lock EM lock

  • 12v 24v Double door  600lb Signal monitored Electric Magnetic Lock , electromagnetic lock EM lock
  • 12v 24v Double door  600lb Signal monitored Electric Magnetic Lock , electromagnetic lock EM lock
12v 24v Double door  600lb Signal monitored Electric Magnetic Lock , electromagnetic lock EM lock
Product Details:
Place of Origin: China
Brand Name: Vians
Certification: CE/ROHS/FCC/MA
Model Number: VI-280BS
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lock Size: 500L*47W*26H(mm) Armature Plate Dimension: 180L*38W*11H(mm)
Holding Force: 280kg(600Lbs) Signal Monitored: YES
Input Voltage: DC12V Or DC24V Working Current: 12V/480mA 24V/240mA
Door Type: Double Door Weight: 2kg
High Light:

electromagnetic door lock

,

magnetic safety lock

12v 24v Double door 600lb Signal monitored Electric Magnetic Lock , electromagnetic lock EM lock​





Product Overview



The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.



Vians magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.





Specification



Product Parameter Parameter Description
Size 500L*47W*26H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs*2)
Input Voltage 12 or 24VDC
Current 12V/500mA or 24V/250mA
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 4.2KG





Product detail

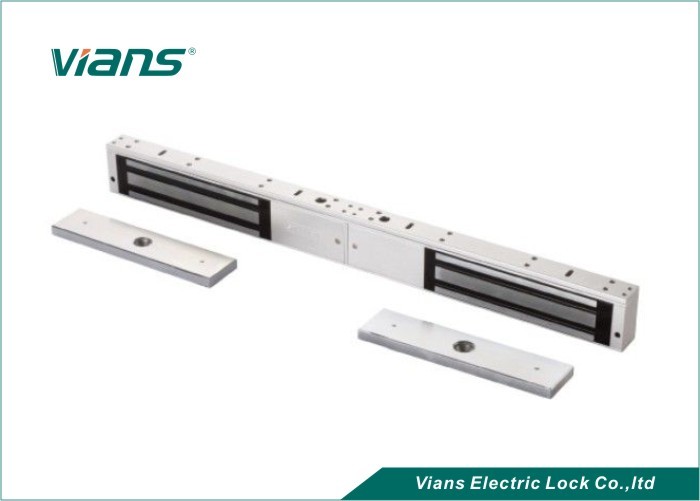

12v 24v Double door  600lb Signal monitored Electric Magnetic Lock , electromagnetic lock EM lock 0



Feature



◆ Collinear Load Test 280KG(600Lbs*2).

◆ Dual Voltage 12 or 24 VDC(optional).

◆ Built-in reverse current protection device (MOV).

◆ Anti residual magnetism design, anti-wear manufacturing materials.

◆ Shell is made of high-strength aluminum alloy, Anodized.

◆ Increase the holding Force, Dual Insulative Hosing.

◆ MA certified products of China / CE certification of EU.

◆ Complete electromagnetic suction working no mechanical failure.





Installation drawing

12v 24v Double door  600lb Signal monitored Electric Magnetic Lock , electromagnetic lock EM lock 1

Product mounting bracket



12v 24v Double door  600lb Signal monitored Electric Magnetic Lock , electromagnetic lock EM lock 2



Wiring



 12v 24v Double door  600lb Signal monitored Electric Magnetic Lock , electromagnetic lock EM lock 3

Trouble and Shooting



Troubles Cause Shooting
Door cannot lock

1. Circuitry malfunction or low voltage.

2. The power supply wire is too thin and long to cause big decrease of voltage.

3. Power supply is broken to cause no voltage output.

4. The positive and negative wire of power supply is connected in reverse.

5. The electromagnetic lock no power input.

1. Check the connection, and measure the voltage to see if it is normal.

2. Modify or change the power supply wire into thicker one.

3. Check the power polarity and correct the connection.

4. Check to see if power supply or controller is correctly connected to NC.Make sure to see up the controller correctly.

No transform of indicator output with low holding force.

1. The mount plate and the electromagnetic lock face not in complete close.

2. The mount plate is fixed to tight, no room to move.

3. The electromagnetic lock and the mounting plate not at same level for case the door is deformed or moved.

4. The surface of mount plate or electromagnetic lock is not clear.

5. The power supply with lower power.

6. The power supply wire is too thin and long.

7. The electromagnetic lock is malfunction.



1. Check the face of mount plate or electromagnetic lock, if the face of plate is deformed to cause no complete close to the lock, please change the plate.

2. Check if the rubber gasket is put into the stick of plate, and adjusts the bolt of plates not too tight at least a little movable.

3. Adjust the mount plate and electromagnetic lock to be level at each other and close completely.

4. Clean the surface of lock and plate, if rusted to cause no working please change the part.

5. Use millimeter to check the voltage and current of electromagnetic lock to see if it is normal, or need repairing or changing power supply.

6. Change into high quality power supply wire, better no more the 20 meters.

7. Repair or change the electromagnetic lock.

Door cannot open The power is not cut off

To check out the connection of power supply and controller, the electromagnetic lock is power-on locking power-off opening type. The lock can be open once power off.
