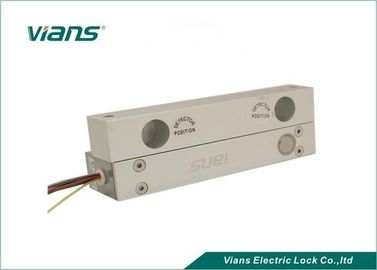

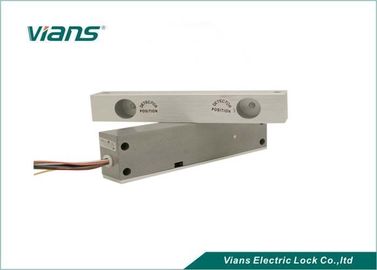

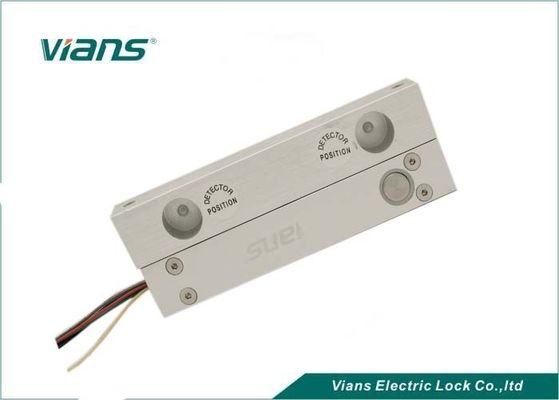

Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door

Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door

    • Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door
    • Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door
    • Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door
  • Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door

    Product Details:

    Place of Origin: China
    Brand Name: VIANS
    Certification: CE/ROHS/FCC/MA
    Model Number: VI-806ST

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: negotiation
    Packaging Details: 30 pcs/cartons
    Delivery Time: 7 working days after received your payment
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Product Type: Narrow Panel Electric Bolt Lock Lock Size: 148.5L*24.5W*39H(mm)
    Strike: 148.5L*24.5W*2H(mm) Working Current: 80mA
    Signal Output: Yes Security Type: Locked When Energized
    Time Delay: 0,3,6,9s
    High Light:

    sliding door bolt lock

    ,

    electric mortise lock

    Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door



    VI-806ST  works with DC 12V and its lock bolt has self-lock function.There are circuits for door and bolt sensor in the lock which guiding out for sensoring the lock and door working status.the adjusting jumper for time delay set in the middle of the lock,and have 3 choice(0s,3s,6s)

    Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door 0


    Advantage of the products





    > Low Temperature, safe and Durable.

    > Low Power, Environmental Protection.

    > Special photoelectricity control,three steps current application.

    > Long Life with 500000 cycles.

    > MOV Provides Reverse Current Protection.

    > Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.

    > Autolock Time Delay: 0,3,6,9sec.

    > Door statue signal output contact(NC.COM).

    > Double protection for loading current.

    > Auto-relock if no Action within 5 secs.

    > Certificate:CE and MA.

    > Photoelectricity Control,Low Temperature,

    > A:The Low Current is Changed immediately;

    > B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.

    > C:The Photoelectricity Control Technology,prevent the machanical defect.





    Product Parameter



    Product Parameter Parameter Description
    Lock Size 148.5Lx24.5Wx39H(mm)
    Strike Size 148.5Lx24.5Wx20H(mm)
    Input Voltage DC12V±10%
    Start Current 950mA
    Working Current 80mA
    Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
    Time Delay 0,3,6,9sec
    Signal output YES
    Security Type Locked when energized
    Weight 0.86KG



    Features:


    Secure mode: The door will lock while supplied with power, and unlock without power.


    Especially suitable for glass doors.


    It is made from durable and high aluminium alloy material, durable for use.


    Special circuit design, the door will unlock until the power is cut off.


    With no external interference, making it more stable and safer.





    Installation drawing



    Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door 1



    Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door 2
    Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door 2Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door 2

    Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door 5
