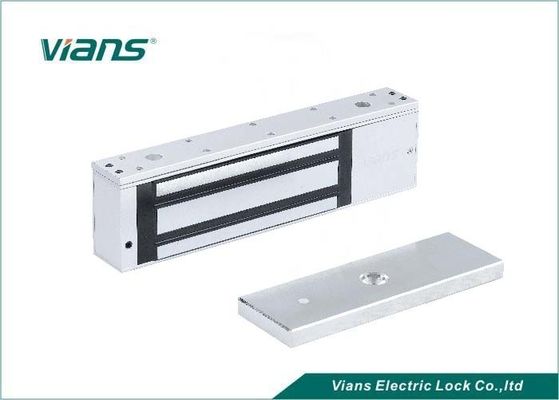

Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates

Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates

    • Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates
    • Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates
    • Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates
    • Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates
  • Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates

    Product Details:

    Place of Origin: China
    Brand Name: Vians
    Certification: CE/ROHS/FCC/MA
    Model Number: VI-500A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Packed in carton
    Delivery Time: 1-7 working days after received your payment
    Payment Terms: T/T or western Union
    Supply Ability: 5,000pcs per month
    Detailed Product Description
    Lock Size: 265L*71W*40H(mm) Holding Force: 500kg(1200Lbs)
    Input Voltage: DC12V Or DC24V Working Current: 12V/600mA 24V/300mA
    Security Type: Power Off To Open Weight: 4.5kg
    Lock Finish: Electroplated Zinc Suitable: Wooden Door , Glass Door ,Metal Door , Fireproof Door
    Signal: Optional

    500KG Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock



    Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates

    Feature

    • Installation type: hanging mounted/surface mounted
    • Operating: fail-safe and locked when energized
    • Unlocking way: unlock when power-off
    • Door type: single door
    • Suitable for wooden, metal, glass, stainless steel and fireproof doors
    • Wiring: PC board mounted terminal block connections
    • Bracket is optional, assembled on hollow door and glass doors
    • Made more secure, lock body adopts two screws on each side
    • Can be used with access control system, building intercom and fire
    • No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
    • MA certified products of China / CE certification of EU.
    • Built-in reverse current protection device (MOV).
    • Shell is made of high-strength aluminum alloy, Anodized.
    • Dual Voltage 12 or 24 VDC(optional).





    Product Overview



    An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate used for access control door locks.

    By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.

    Unlike an electric strike access control door lock a magnetic lock has no interconnecting parts and is therefore not suitable for high security applications because it is possible to bypass the lock by disrupting the power supply.

    The whole system includes electric lock,power suply,access controller,exit button,door bell or RFID cards.



    Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates



    Specification



    Product Parameter Parameter Description
    Size 265L*71W*40H(mm)
    Armature Plate Dimension 185L*60W*13H(mm)
    Holding Force 500kg(1200Lbs)
    Input Voltage 12 or 24VDC
    Current 12V/600mA or 24V/300mA
    signal output YES
    Operating Temp -10~+55℃(14-131F)
    Humidity 0~90%(non-condensing)
    Cover Finish Anodized aluminum
    Lock Finish Zinc
    Armature Plate Finish Zinc
    Weight 4.5KG









    Installation drawing

    Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates

    Product mounting bracket



    Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates



    Wiring



     Heavy Dust 1200LBS Magnetic Lock , High Holding Force Electromagnetic Lock For Gates





    Trade show





    paste-pic-dp_uuid_xg36u





    Electromagnetic Lock Trouble and Shooting





    Troubles Cause Shooting
    Door cannot lock

    1. Circuitry malfunction or low voltage.

    2. The power supply wire is too thin and long to cause big decrease of voltage.

    3. Power supply is broken to cause no voltage output.

    4. The positive and negative wire of power supply is connected in reverse.

    5. The electromagnetic lock no power input.

    1. Check the connection, and measure the voltage to see if it is normal.

    2. Modify or change the power supply wire into thicker one.

    3. Check the power polarity and correct the connection.

    4. Check to see if power supply or controller is correctly connected to NC.Make sure to see up the controller correctly.

    No transform of indicator output with low holding force.

    1. The mount plate and the electromagnetic lock face not in complete close.

    2. The mount plate is fixed to tight, no room to move.

    3. The electromagnetic lock and the mounting plate not at same level for case the door is deformed or moved.

    4. The surface of mount plate or electromagnetic lock is not clear.

    5. The power supply with lower power.

    6. The power supply wire is too thin and long.

    7. The electromagnetic lock is malfunction.



    1. Check the face of mount plate or electromagnetic lock, if the face of plate is deformed to cause no complete close to the lock, please change the plate.

    2. Check if the rubber gasket is put into the stick of plate, and adjusts the bolt of plates not too tight at least a little movable.

    3. Adjust the mount plate and electromagnetic lock to be level at each other and close completely.

    4. Clean the surface of lock and plate, if rusted to cause no working please change the part.

    5. Use millimeter to check the voltage and current of electromagnetic lock to see if it is normal, or need repairing or changing power supply.

    6. Change into high quality power supply wire, better no more the 20 meters.

    7. Repair or change the electromagnetic lock.

    Door cannot open The power is not cut off To check out the connection of power supply and controller, the electromagnetic lock is power-on locking power-off opening type. The lock can be open once power off.
