|Place of Origin:||China|
|Minimum Order Quantity:||10pcs|
|Packaging Details:||30 pcs/cartons|
|Delivery Time:||7 working days after received your payment|
|Payment Terms:||T/T or|
|Supply Ability:||3,000pcs per month|
|Fail Secure:||Unlocked When Energized||Face Plate:||200L*24.5W*39H(mm)|
|Start Current:||960mA||Standby Current:||110mA|
|Feature:||Fail Secure||Autolock Time Delay:||0,3,6,9sec|
sliding door bolt lock,
drop bolt lock

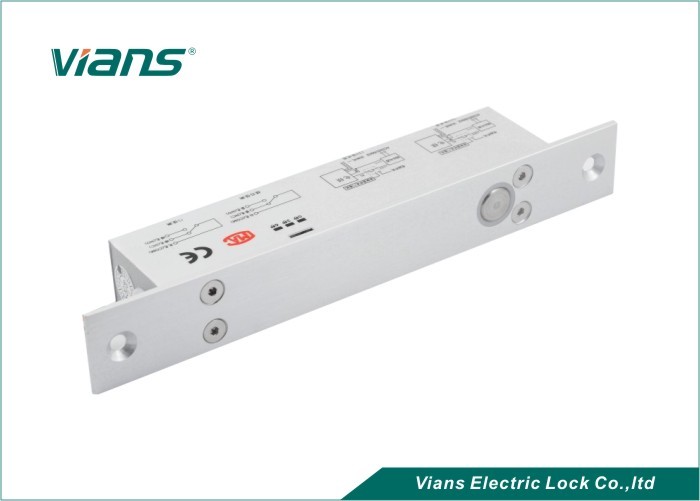

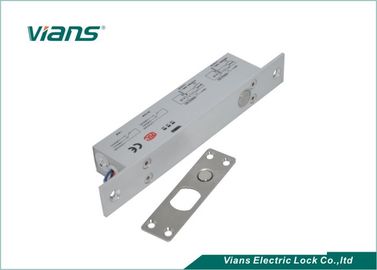

Access Control Narrow Panel Electric Drop Bolt Lock With Signal Output And Time Delay
1. Fail Safe : Lock when energized
2. Face Plate: 200L*24.5W*39H(mm)
3. Strike: 90L*25W*2H(mm)
4. Bolt: 17mmDIA,stainless steel 13mm throw
5. Voltage: DC12V(DC24V)
6. Start Current: 900mA
7. Standby Current: 110mA
8. Solid Bolt: polishing housing, 1000Kg Holding Force
9. Suitable For: Wooden Door, Glass Door, Metal Door, PVC Door
10. Signal Output: Door Status Output, NO/NC/COM
11. Surface Temp: Low Temperature
12. Induction Distance: 8mm
13. Operating temp: -10~+25℃(14-131F)
14. Operating Humidity: 0~90%(non-condensing)
15. Special Designed: Tested to 500000 operations
16. Face place material:High Aluminum, Carrulous Line Finished
1. The photoelectricity control technology, prevent machanical defect
2. Low Power, safety and durable
3. Low current, environmental protection
4. Special photoelectricity control, three steps current application
5. Long Life with 500000 operations
6. MOV provides reverse current protection
7. Superior strength aluminium alloy, solid stain-less steel bolt
8. Autolock Time Delay: 0,3,6,9secs.
9. Door statue signal output contact(NC.COM)
10. Double protection for loading current
11. Certificate: CE, MA
12. Photoelectricity control, low temperature
A:The low current is changed immediately
B:When door frame doesn`t coincide with door leaf, door leaf against the bolt, then the electric bolt will start the low-power function to bring low temperature
C:The photoelectricity control technology, prevent the machanical defect.
|Product Parameter||Parameter Description|
|Door Type Applicable||Wooden door , Glass door ,Metal door , Fireproof door|
|Security Type||Locked when energized|
Secure mode: The door will lock while supplied with power, and unlock without power.
Especially suitable for glass doors.
It is made from durable and high aluminium alloy material, durable for use.
Special circuit design, the door will unlock until the power is cut off.
With no external interference, making it more stable and safer.
